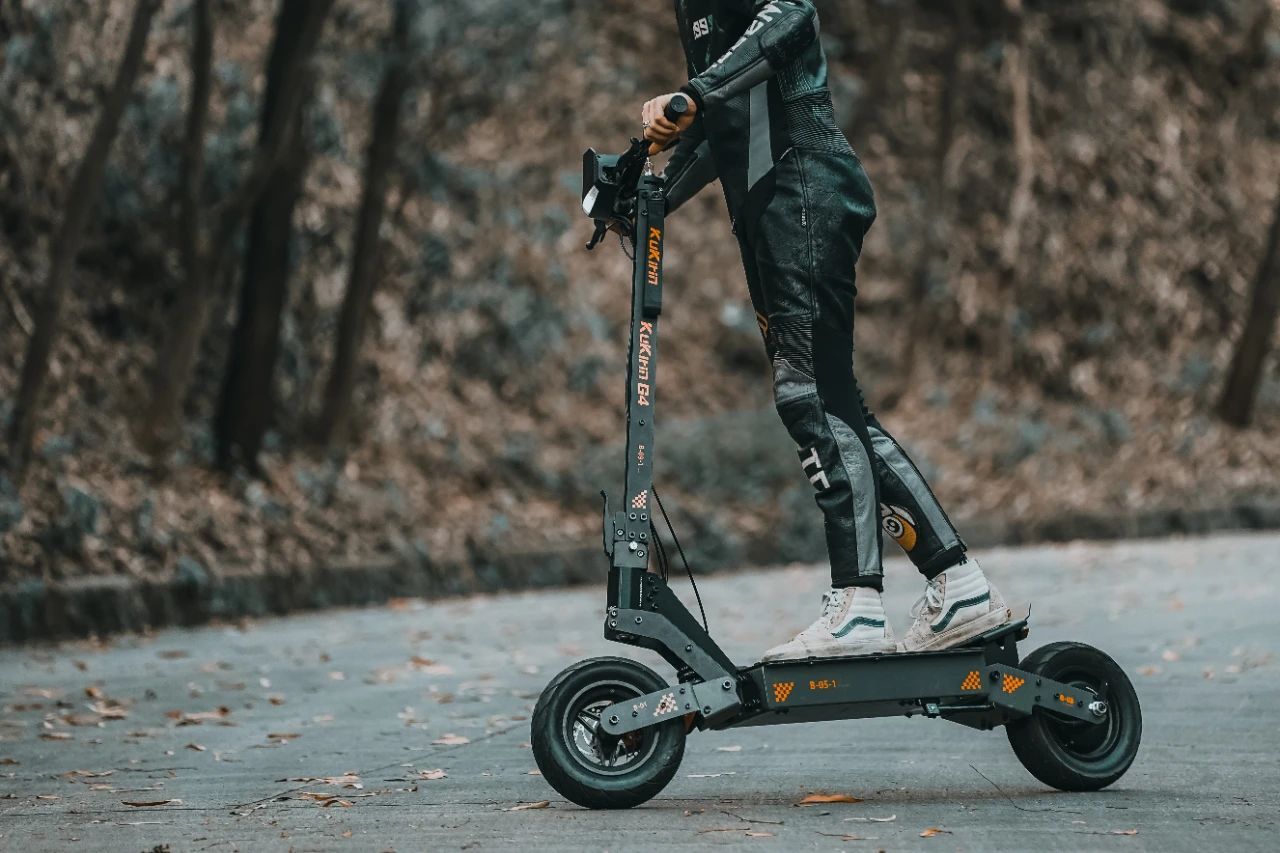

Kukirin G4 Hluav Taws Xob Hluav Taws Xob yog qhov kev xaiv hluav taws xob zoo tshaj plaws hauv kev ua lag luam hluav taws xob, ua kom muaj zog, ua haujlwm, ua tau zoo, thiab kev nplij siab. Nws yog nruab nrog lub zog 2000W lub cev muaj zog, muab lub zog ntsuas ntawm 2000W thiab lub zog tshaj plaws ntawm 2400W.
Nrog nws cov qauv sib xyaw ua ke, tuag-cam khwb rau pem hauv ntej axles, thiab stainless hlau g4 lub cev ruaj khov thiab muaj zog zog ua kom lub scooter qhov kev tawm hluav taws xob tas li.
Pem hauv ntej thiab nram qab 140 hli xaim hluav taws xob disc nres, cua thiab cua sov dissipation, tsis muaj kev ntshai ntawm qhov kev ntseeg siab, muab kev ntseeg siab kom nres thaum koj xav nres.
Rau coj coj teeb rau qhov yooj yim ntawm hmo ntuj mus ncig. Kuj tseem muaj ob lub kauj tsheb rau ib lub teeb pom kev zoo. Lub nraub qaum muaj ob lub teeb pom kev sib piv ntawm lub teeb nyob rau ntxiv rau lub teeb nres thaum tig rov qab. Cov 6 LEDs tsis yog ua rau koj lub teeb pom kev zoo hmo ntuj, tab sis kuj ua kom koj muaj kev nyab xeeb dua thaum tsav tsheb thaum hmo ntuj.
Kov cov ntse digital zaub, uas tuaj yeem hloov tau txhua lub sijhawm los ntawm kov cov nyees khawm ntawm lub vijtsam. Tsav hom, khawm hluav taws xob hloov, thiab txhua cov ntaub ntawv tsav tsheb tuaj yeem tswj tau yooj yim.
Kaum ib-nti lub cav roj hmab log tsheb tau siv los ntawm Kukirin G4. Caij ntawm lub puam, hauv cov daus, lossis nyob hauv hav zoov uas tau ua tau yooj yim los ntawm cov log tsheb ultra dav.
Lub 2000Wwwh ultra-siab zog ua ke log Hub lub zog hluav taws xob uas lub hwj chim kukirin g4 tuaj yeem ncav cuag kom ntev txog li 70 km / h. Txhawm rau kom muaj kev ua tau zoo dhau ib ncua ntev ntev, lub cev muaj zog ua haujlwm ib qho kev npaj ua kom txias ob npaug.
Daim ntawv muaj cai
Tus neeg yus paub
Peb thov caw koj los yuav lub siab-kawg kukirin g4 hluav taws xob tsheb. Nws qhov kev ua tau zoo tshaj plaws, muaj txiaj ntsig zoo, thiab muaj txiaj ntsig ntxiv yuav tsum ua rau nws xaiv qhov kev xaiv zoo. Peb cia siab tias yuav hais lus nrog koj kom peb tuaj yeem muab cov nqi ex-Hoobkas koj, thawj tus nqi kev pabcuam cov neeg siv khoom, thiab xa sijhawm raws sijhawm.
Email: business@kukirinfactory.com
Whatsapp: +86 13417534901
Cov FAQ
Kukirin G4 Paramters:
|
Ntim loj |
1275 * 260 * 600 hli (sab hauv) / 1330 * 256 * 590mm (sab nraud) |
|
|
Qho hnyav |
Khoom GW |
48 ± 0. 5kg |
|
Khoom nw |
41.5 {0. 5kg |
|
|
Qhov loj |
Kev siv nyiaj loj me |
1336 * 1295 * 660mm |
|
Daim txiag loj |
1336 * 550 * 660mm |
|
|
Lausebar loj |
660 hli |
|
|
Pedal Loj |
510 * 210mm |
|
|
Pedal los handlebar loj |
990mm |
|
|
Chassis Qhov Siab |
185 hli |
|
|
Max Load |
120kg |
|
|
Hov ceev |
Maxium Ceev |
70km / h |
|
1, 2nd, 3rd (idling) |
20km / h, 40km / h, 70km / h |
|
|
Thib 1, thib 2, 3rd |
20km / h, 40km / h, 70km / h |
|
|
Mais kev |
Nruab Nrab Ceev Mileage (65kg Thauj) |
75km |
|
Ua yeeb yam |
Kev Muaj Peev Xwm |
Tsawg dua los yog sib npaug rau 30 degree nqes hav |
|
Cav Nres |
Pem hauv ntej thiab nram qab disc nres & E-nres |
|
|
Nres deb |
7-10m |
|
|
LOJ DEJ |
Ntawv ip54 |
|
|
Khoom |
Ncej Khoom |
Hlau + Aluminium Hybrid Ncej |
|
Tsav hom |
Kev sib xyaw Hub Lub Cev Muaj Zog (Rear Log Ib Tsav) |
|
|
Fai fab hov ntau |
60V |
|
|
Txhim Kho Hom |
Txhuam |
|
|
Lub hwj chim hnub |
Rated zog |
2000W |
|
Instantaneous siab tshaj plaws zog |
2400W |
|
|
Nyob ceev |
1470 rpm |
|
|
Max tso tawm torque |
46.19 N·m |
|
|
Tus qauv |
18650 lithoum roj teeb |
|
|
Fai fab hov ntau |
60V |
|
|
Lub peev xwm |
Ib Leeg Muaj Peev Xwm |
2600mah |
|
Roj Teeb Pob Muaj Peev Xwm |
20Ah |
|
|
Cov Qauv Siv Hluav Taws Xob |
1.2kw · h |
|
|
Roj teeb tiv thaiv cov kab ke |
Board Cov Chaw Tiv Thaiv Hluav Taws Xob (BMS) |
|
|
Kev tawm tswv yim voltage |
180-240 vac ~ 50 / 60Hz |
|
|
Input tam sim no |
2A max |
|
|
Tso Tawm Voltage |
67.2V |
|
|
Tawm Tam Sim No |
2A |
|
|
Them Sij Hawm |
10~11h |
|
|
Pem Hauv Ntej Shock Absorber |
Caij nplooj ntoos hlav ceev adstorption |
|
|
Sab Qab Teb Raug |
Caij nplooj ntoos hlav ceev adstorption |
|
|
Headlight Ntaus |
Tus coj |
|
|
Headlight Lub Zog |
6W |
|
|
Headight Lub teeb pom kev zoo |
45 degree |
|
|
Hoadlight Thaj Chaw |
8㎡ |
|
|
Tig Teeb |
Tau |
|
|
Lub tso tseg |
Yog lawm, Taillights yog nyob rau thaum lub taub hau yog nyob rau, Tailight Flash thaum tawg. |
|
|
Qhov loj |
11In (90 / 65-6. 5) |
|
|
Ntaus |
Lub Tshuab Nqus Tsev |
|
|
Lub log tsheb zoo tshaj plaws |
350kPa (50psi) |
|
